Precision machining at its finest! 50,000 sq ft of machining

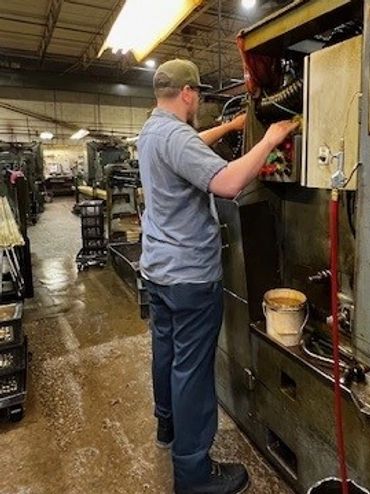

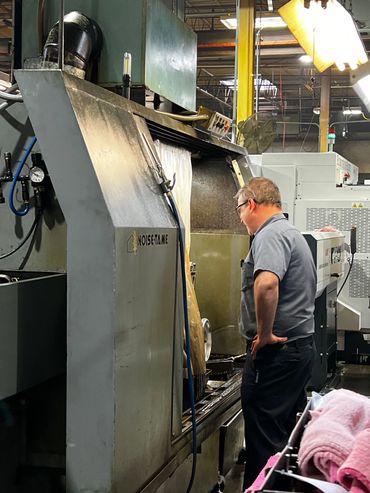

We have over 50 Screw machines - both Davenport and Wickmans combined.

For high-volume machined metal components, the most economical option is often multi-spindle screw machines.

Model B Davenports

Max Round Size .875" / Max Hex Size .750"

6-44 CNC Wickmans

 Max Round Size 1.750" / Max Hex Size 1.51"

1"-6 Wickmans

 Max Round Size 1.0" / Max Hex Size .875"

1-3/4"-6 Wickmans

Max Round Size 1.750" / Max Hex Size 1.50"

ACW 6-44 Wickman

Max Round Size 1.750" / Max Hex Size 1.51"


Our versatile CNC Department has wide array of machines

Including Mori Seiki's, EuroTech's and Citizen Swiss machines.

Mori Seiki NZX2000/800SY

Max Round Size 80 mm / Max Hex Size 80 mm

Mori Seiki NZX2000/800SY2

Max Round Size 80 mm / Max Hex Size 80 mm

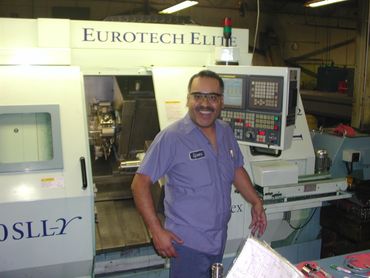

65 mm Eurotech Elites

Max Round Size 2.625" / Max Hex Size 2.250"

A32 Citizens

Max Round Size 1.250" / Max Hex Size 1.062"

C16 Citizens

Max Round Size .625" / Max Hex Size .500"

L20 Citizens

Max Round Size .750" / Max Hex Size .625"

L32 Citizens

Max Round Size 1.250" / Max Hex Size 1.062"

Kitamuras

Brother

Leadwells

Kia with Robotic Arm

Haas Milling Centers

IN-house Thread Coating

As a Value-Added Service to our Customers

We have 604, and 616 readily available. Other sealants are subject to quotation.

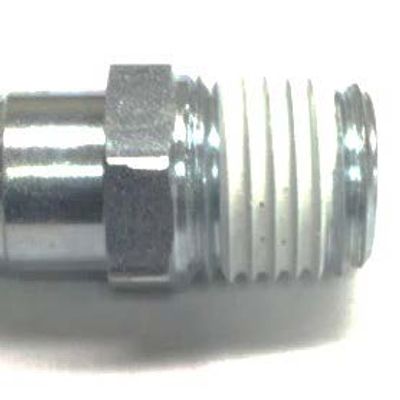

Self Sealer 604

Self Sealer 604 is a low viscosity, tough, pre-applied, non-hardening threaded sealant. When dried, it becomes a resilient, tight clinging, non-curing sealant for tapered or straight threads. It provides an instant seal on different pipe threads and can be used up to eight (8) times without recoating.


Self Sealer 604 is water based, non-toxic and can be applied easily without special handling precautions. It provides resistance to vibrational loosening because of its prevailing torque characteristics. Therefore, it is very effective on non-locking applications.


Corrosion is inhibited between mating threads. The threads are safely sealed from contact with the atmosphere by the coating.


Safe to use with plastics. It will not craze or attack plastic components.



Self Sealer 616

Self Sealer 616 is a high viscosity, tough, pre-applied, non-hardening threaded sealant. When dried, it becomes a resilient, tight clinging, non-curing sealant fro tapered or straight threads. It provides an instant seal on different pipe threads and can be used up to eight (8) times without recoating.


Self Sealer 616 is water based, non-toxic, safe and can be applied easily without special handling precautions. It provides resistance to vibrational loosening because of its prevailing torque characteristics. Therefore, it is very effective on non-locking applications.


Corrosion is inhibited between mating threads. The threads are safely sealed from contact with the atmosphere by the coating.


Safe to use with plastics. It will not craze or attack plastic components.


Minimum bore 5/32” (to secure part on mandrel for coating)

Maximum bore 2” (to secure part on mandrel for coating)

O.D. Maximum 2”


Technical Data Sheets available.

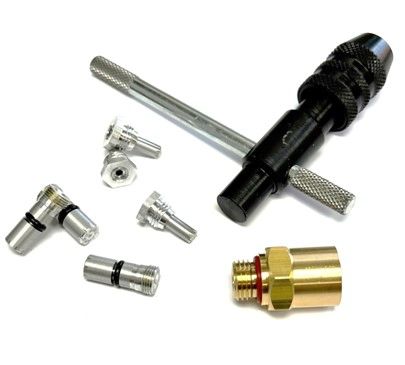

Yes, we also do assemblies!

Assemblies

We machine your part and will also assemble the mating part, o-ring, etc.




Learn more

Machining Masterpieces: Our Gallery
